Designed & Manufactured in collaboration with Jord
Engineers Pty. Ltd.
|
 |

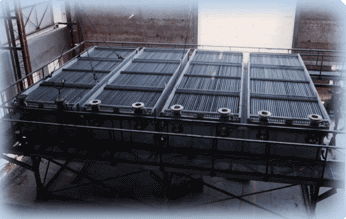

- Air Cooled Heat Exchangers and Air Cooled Condensers
- Thermal design carried out on
HTFS/ HTRI software
- Mechanical design as per ASME VIII Div 1 and BS 5500
- Air Coolers for Petroleum Refinery applications comply with API 661 requirements
- Supplied to Refineries, Power Plants and Petrochemical Plants around the world.
|
| |
| Salient Features |
- Type : Induced, Forced & Natural Draught
- Fin Types : ‘G’, ‘L’, ‘LL’ applied fins, Welded Solid/ Serrated fins, Extruded
Aluminum fins
- Header Boxes : Box Plug, Flanged Cover Plate, ‘D’ type Bonnet, Manifold
- Tube to Tubesheet Joints : Expanded , Welded
- Air Flow Control : Auto / Manually adjustable pitch type fans, Variable Speed Drives/ Motors, Auto / Manual adjustable louvers
- Power Transmission Drives : Fans coupled with High Torque Drive Belt / Pulley Drive, Gear Drive, directly driven by Motors, ‘V’ Belt-Pulley Drive
- Optimized Thermal
Performance for wide range of Process Fluids & Heat Duty
- Optimized Power Consumption
- Optimum Noise Performance
- Fully Modularized
Design, Shop Assembled for easy erection
- Maximum size of the Tube Bundle manufactured and erected is 4.5m Wide x 12.5m Lg.
- 20 No. Tube Bundles can be assembled at a time
|
|
|
|
